Technical parameter
Protocols & Standard SIP RFC3261, TCP/UDP, RTP/RTCP, HTTP/HTTPS, DNS, DHCP, NTP, STUN, LLDP/CDP, TR-069, 802.1x, TLS, SRTP, IPV4/IPV6, OpenVPN, L2TP, QoS.
Speech Coding Support G.711μ/a, G.722, G.726-32, G.729, DTMF(INBAND, RFC2833, SIP INFO), VAD, CNG, AEC.
Network Characteristic 10/100Mbps Ethernet, IP mode IPV4/IPV6/IPV4&IPV6, IP acquisition method: DHCP/static IP; VPN, VLAN.
Device Features IP voice broadcast, Multicast paging, Listen the broadcast by priority, Auto-answer, 3 SIP lines, Synchronization time, Remote volume adjustment, Action URL/Action URI.
Speaker 30W high fidelity speaker.
Security Distinguish the rights between ordinary users and adminstrators; 256-bit AES security profile, TLS, SRTP, HTTPS, 802.1x media access control.
Multi-language Simplified Chinese, Traditional Chinese, English, Turkish, Korean, Russian, French, Italian, German, Polish, Portuguese, Janpanes, Spanish, Thai, Hindi, Arabic, Vietnamese, Farsi.
Upgrade The Configuration Auto-Provisioning through TFEP/HTTP/HTTPS/DHCP OPT66/SIP PNP; Configuration import/export; Syslog; Upgrade the firmwave through the local HTTP page; Large-scale depolyment is carried out through XML configuration files encrypted with TR069 or AES; Web-based Packet-dump.
Power&Energy saving Intergrated PoE*802.3af Class3; PoE: IEEE 802.3af/IEEE 802.3at.

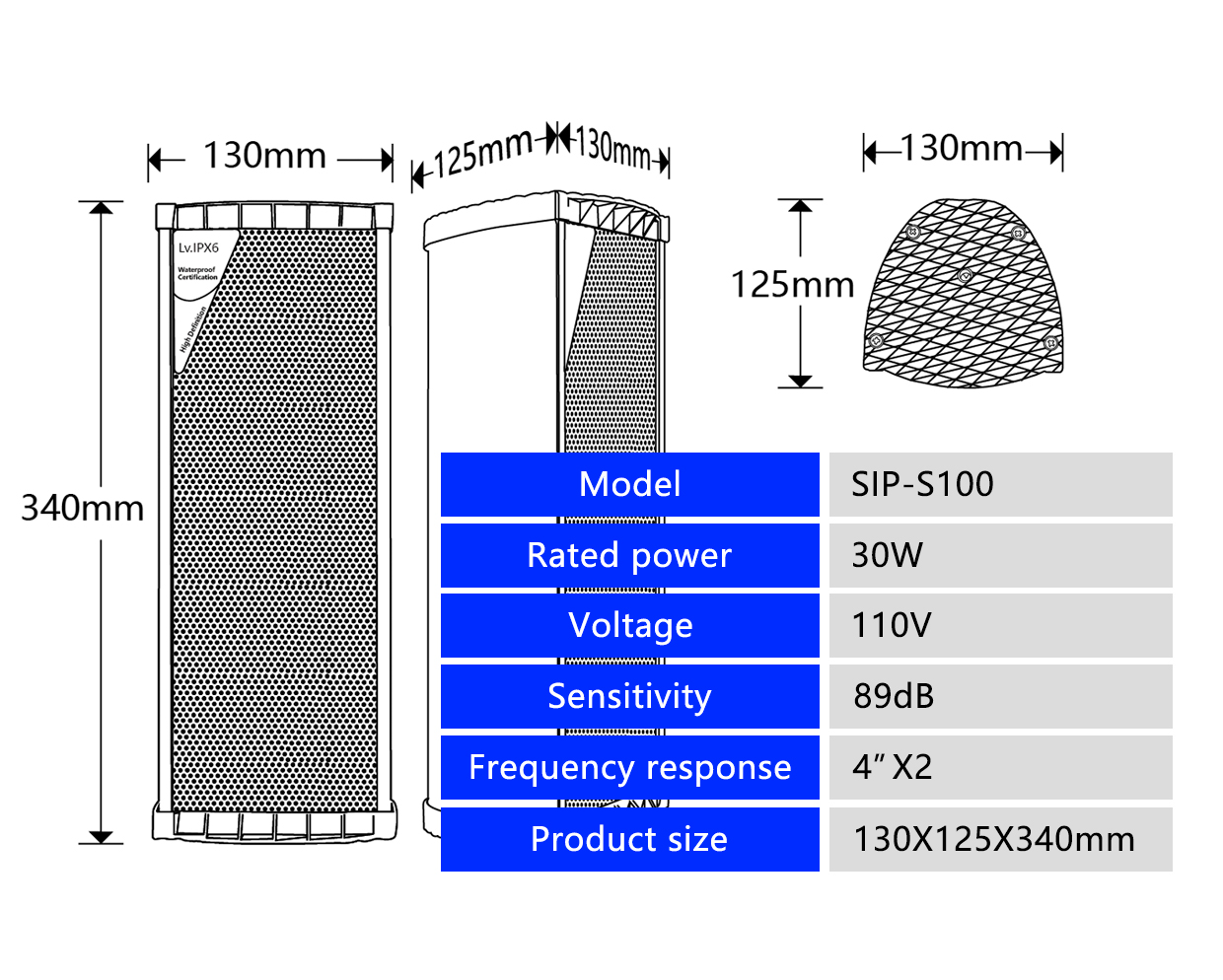

Product Specification Physical key*1:RST/IP key to play IP protocol/reset device; RJ45 interface*1: Connect to the Internet or local area network (Support PoE power supply); DC12V/2A; Product size: 130*125*340mm; Net weight: 1.35kg.
Temperature&Humidity Working temperature:-20~40℃; Storage temperature:-30~60℃; Humdity:10~90% non-condensing.
Packing list A SIP-S100 host, Universal power adapter(Optional), Cable, Quick start to use maual.
